Depth Sensors

Features

  • 0.01% Accuracy
  • Anti-fouling Pressure Port
  • One Part-Per-Billion Resolution
  • EFrequency outputs for pressure and temperature and RS-232 and RS-485 output signals
  • Low Power Consumption
  • High Reliability and Stability

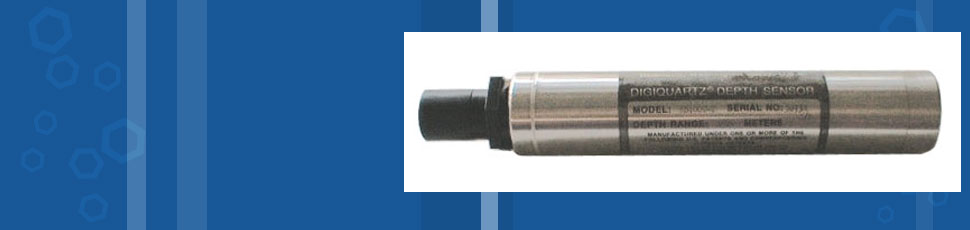

DSense-8B

Paroscientific Digiquartz® Depth Sensors offer accurate depth measurements to 7000 m. Our depth sensors are available with either frequency or RS232/485 output in gauge or absolute versions. Frequency output depth sensors can be connected to an intelligent electronic card to make a system capable of RS-232 and RS-485 operation. Sub-millimeter level high resolution pressure measurements are easily achieved.

Model Details
Model 8DP and 8CDP Absolute and Gauge
  • 7 Absolute Pressure Ranges. – 10 to 700 m
  • 6 Gauge Pressure Ranges. – 10 to 140 m
  • Non-corrosive Plastic Housing
  • 8CDP series have Intelligent Electronics with RS-232 & RS-485 Bi-Directional Interface
  • 8DP series provide frequency output
Model 8B and 8CB Absolute
  • 4 Absolute Pressure Ranges 1400 m to 7000 m
  • Stainless steel housing
  • 8CB series have Intelligent Electronics with RS-232 & RS-485 Bi-Directional Interface
  • 8B series provide frequency output
